Ivigo Wi-Fi Convector

All smart features in one heater

All smart features in one heater and your heater is at your fingertips wherever you are...

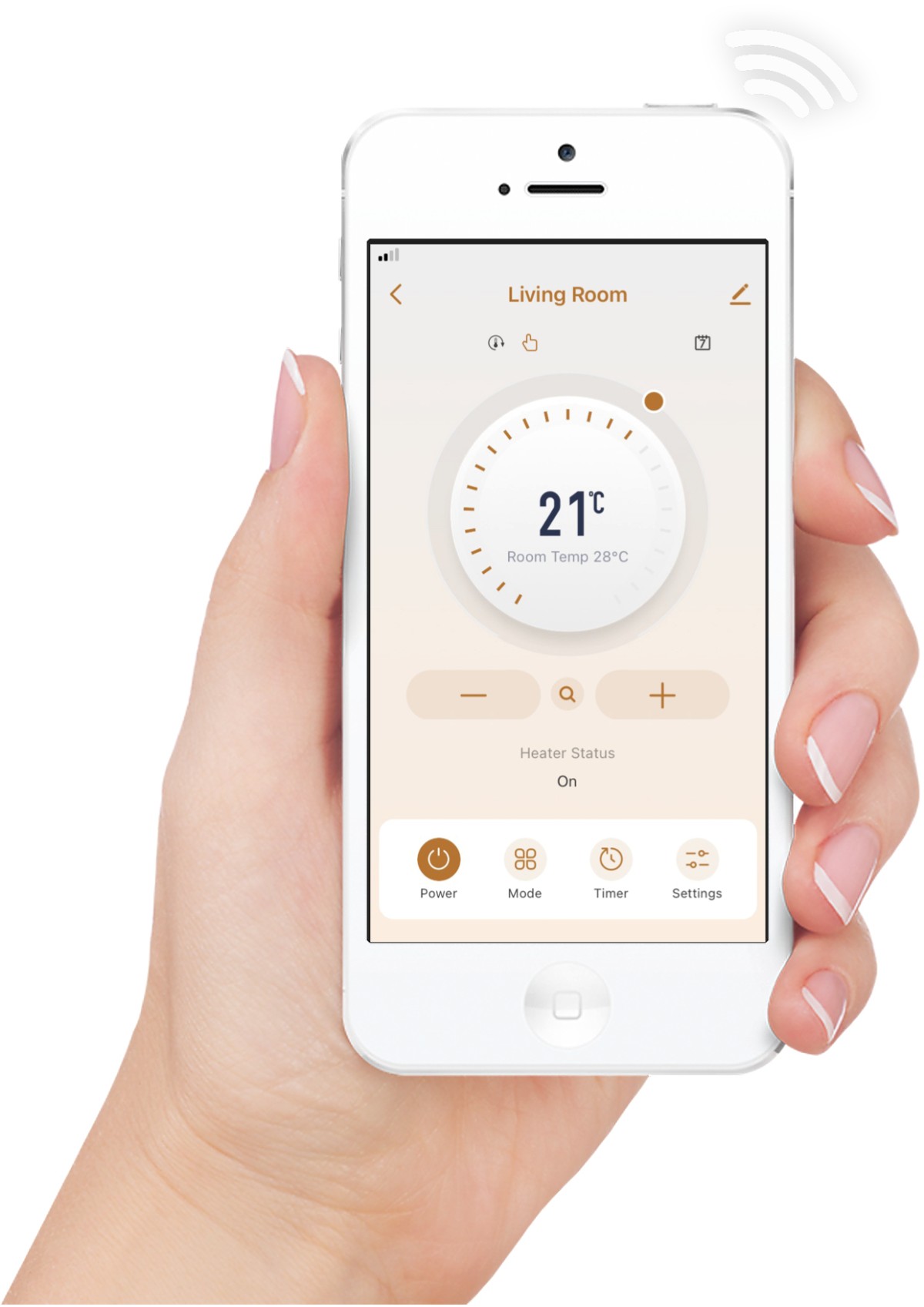

Install the app on your phone and start experiencing this comfort right now.

Install the app

Comfort and economy combined, all settings on your phone...

Control the Power of Your Heater

With this feature, your heater works at the wattage you set.

IPX4

You can also use your convector heater in humid areas.

The heat requirement depends on factors such as the exterior temperature, room heat isolation, door open/close cycles. The values stated on the above table are for average conditions with an outside temperature of 8-10 degrees therefore when calculating the heater power these factors should be taken into consideration.

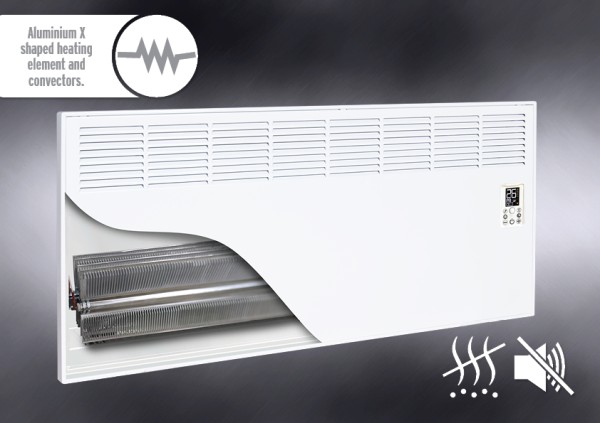

Aluminium X shaped heating element and convectors. Tin coating technology is used in our heater cables.Cable thickness: 2000-2500 Watt products; 3x1.50 mm2, 1000-1500 Watt products; 3x1.0 mm2

Professional WIFI Panel Convector

Type

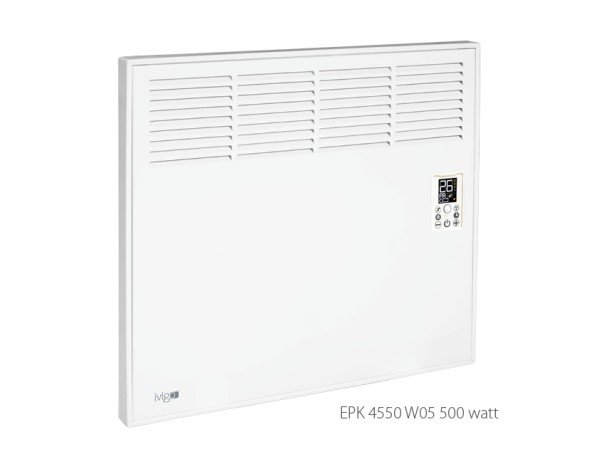

EPK 4550W05

EPK 4550W07

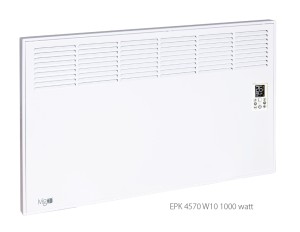

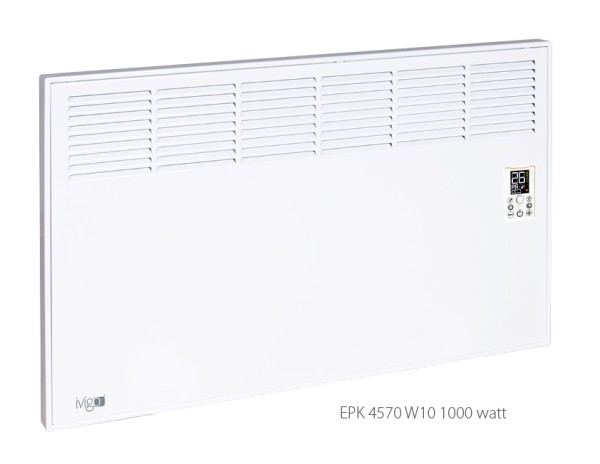

EPK 4570W10

EPK 4570W15

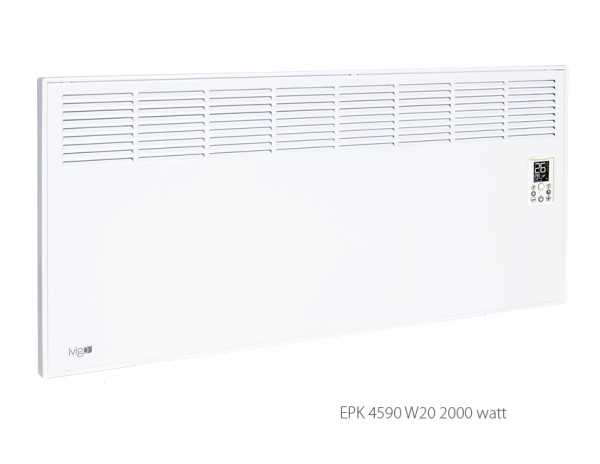

EPK 4590W20

EPK 4590W25

Height mm

450

450

450

450

450

450

Length mm

500

500

700

700

900

900

Depth mm

80

80

80

80

80

80

Weight kg

5.3

5.3

7.1

7.2

8.8

9.2

Electrical Power W

500

750

1000

1500

2000

2500

Voltage V

220-240

220-240

220-240

220-240

220-240

220-240

Current A

2,07-2,26

3,11-3,40

4,13-4,52

6,23-6,80

8,3-8,96

10,40-11,34

Frequency Hz

50-60

50-60

50-60

50-60

50-60

50-60

Electronic Room

Temperature Control

Standard

Standard

Standard

Standard

Standard

Standard

Energy Saving Module (Programmable)

Standard

Standard

Standard

Standard

Standard

Standard

On/Off Switch

Standard

Standard

Standard

Standard

Standard

Standard

Cord Length m

1.5

1.5

1.5

1.5

1.5

1.5

Protection Type

I

I

I

I

I

I

Thermostat Against Excessive Heat

Standard

Standard

Standard

Standard

Standard

Standard

Rollover protection switch

Standard

Standard

Standard

Standard

Standard

Standard

Mechanical Thermostat Control

-

-

-

-

-

-

Energy Consumption Display

Standard

Standard

Standard

Standard

Standard

Standard

Room Temperature Display

Standard

Standard

Standard

Standard

Standard

Standard

Real Time Clock

Standard

Standard

Standard

Standard

Standard

Standard

Energy Consumption Monitoring

Standard

Standard

Standard

Standard

Standard

Standard

Daily / Weekly Program

Standard

Standard

Standard

Standard

Standard

Standard

IPX4

Standard

Standard

Standard

Standard

Standard

Standard

WIFI

Standard

Standard

Standard

Standard

Standard

Standard

Motion Sensor

Standard

Standard

Standard

Standard

Standard

Standard

Adaptive Start Feature

Standard

Standard

Standard

Standard

Standard

Standard

Anti-Frost

Standard

Standard

Standard

Standard

Standard

Standard

Heating Power Limiter

Standard

Standard

Standard

Standard

Standard

Standard

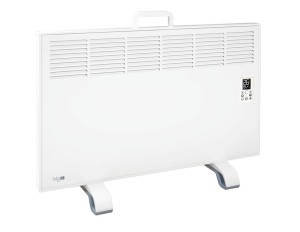

Plastic Legs

Standard

Standard

Standard

Standard

Standard

Standard

Wall Mounting Kit

Standard

Standard

Standard

Standard

Standard

Standard

Color Choices

White

White

White

White

White

White

Device Lock

Standard

Standard

Standard

Standard

Standard

Standard



Standard

:

EN 60335-2-30

Material Structure

:

Cold Rolled Steel Iron  body: 0.80 mm, frame: 1.00 mm.

Surface  process

:

Our radiator has been produced in our modern facilities through surface cleaning + phosphatizing  followed by being painted with  water-based primer and electrostatic powder paint coating, and baked in 200°C without human touch.

Color

:

RAL9016 (Standard)

Heating Unite Group

:

Aluminyum X type resistance and convectors

Quality Standard

:

CE, TUV, TS EN ISO 9001:2015, ECODESIGN

Heights

:

450 mm

Lengths

:

500-700-900 mm

Security

:

The product goes to functional test, earth loop continuity check, high voltage breakdown and leak current mesurement tests.

Guarantee

:

3 Years



Profesyonel WIFI Konvektör Model Seçimi

Model

Tavsiye Edilen Isıtıcı Gücü (watt)

Oda Alanı (m2)

EPK 4550  05

500

3 - 6

EPK 4550  07

750

4 - 9

EPK 4570  10

1000

6 - 12

EPK 4570  15

1500

9 - 17

EPK 4590  20

2000

12 - 24

EPK 4590  25

2500

14 - 28

Professional Convector | Guarantee

1. The Guarantee Period commences upon the delivery of the unit and is 3 years.

2. The unit is completely within the guarantee coverage of our Company including all the parts thereof.

3. If the unit breaks down within the guarantee period thereof due to material or labor deficiency the repair will be made without any cost requirements under the title of labor cost, replaced part cost or any other title.

4. The customer may request the replacement of the unit, refunding, reduction in price pro rata to the defect under following conditions even if the consumer has used the repair right thereof:

- If the same defect repeats twice within one year as from the delivery of the unit to the client within the predetermined guarantee period or more than four breakdowns occur due to different reasons or if the total amount of the breakdowns due to different reason exceed 6 times causing the prevention of the usage of the unit continuously within the predetermined guarantee period

- If the maximum repair period is exceeded

- If it is determined by the service station or to the seller, dealer, agent, representative, importer or to the producer/manufacturer thereof if a service station does not exist, with a report that the repair of the unit is not possible

5. Breakdowns due to usage other than the ways specified in usage manual of the unit is out of guarantee coverage.

EN 60335-2-30: 2011 A11: 2012
